Outer Conductor 75 OHM Braiding Cable: Essential for Signal Integrity and Performance

In the world of electronics and telecommunications, the quality of signal transmission is paramount. Whether it's for high-definition video, audio signals, or data transfer, maintaining signal integrity is critical. One key component that ensures high-quality signal transmission in cables is the outer conductor 75-ohm braiding cable.
The "braiding" refers to the outer conductor, which is typically made of a tightly woven mesh of metal wires, often copper or aluminum. This braid serves as the shield that protects the inner signal-carrying conductor from electromagnetic interference (EMI) and radio-frequency interference (RFI). The outer conductor plays a critical role in preventing external noise from corrupting the transmitted signal.

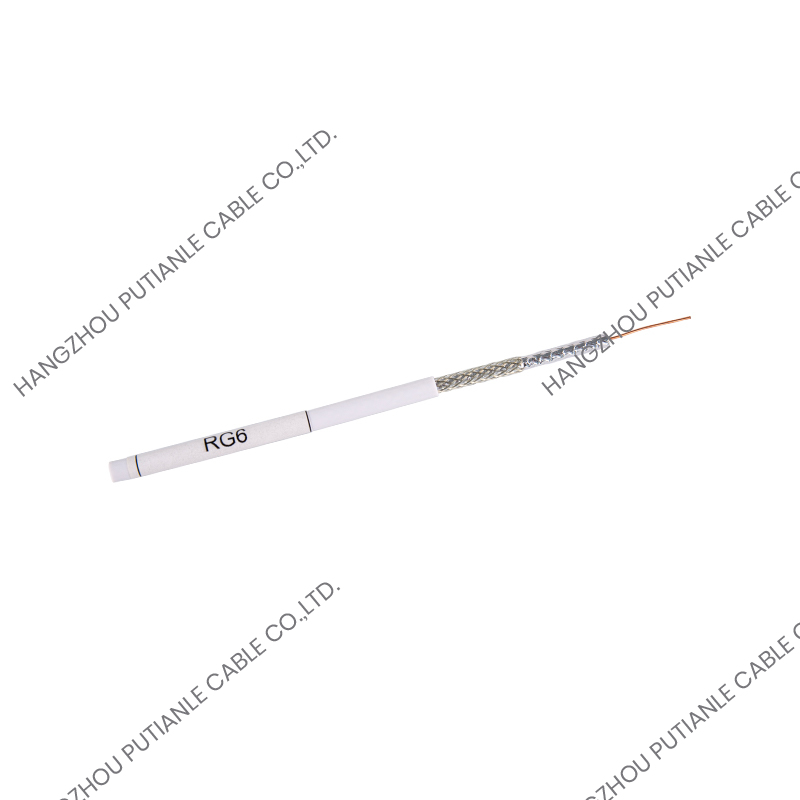

Construction of 75 OHM Braiding Cable
A 75-ohm braiding cable is made up of several layers that work together to ensure optimal performance:
Inner Conductor: The central core of the cable, usually made of copper or copper-clad steel, carries the electrical signal. It is typically insulated to prevent contact with the other layers.
Dielectric Insulation: Surrounding the inner conductor is a layer of dielectric material, which acts as an insulator. The dielectric material can vary but is often made from materials such as polyethylene, foam, or Teflon. The thickness of this insulation is critical in maintaining the cable's 75-ohm impedance.
Outer Conductor (Braiding): The outer conductor consists of a tightly woven metal braid, typically made of copper or aluminum. This braid serves as both a shield against electromagnetic interference (EMI) and a ground reference for the signal. The tightness and quality of the braid affect the cable's ability to block external interference and protect the signal from degradation.
Outer Jacket: The final layer is a protective outer jacket, typically made from durable materials like PVC or polyurethane. This jacket provides mechanical protection to the cable and ensures that it can withstand environmental conditions such as moisture, abrasion, and UV exposure.
The 75-ohm braiding cable is used extensively in industries that require high-quality signal transmission. Its primary applications include:

Television and Video Equipment: One of the most common uses of 75-ohm braiding cables is in television and video equipment. These cables are used for transmitting video signals from cameras to monitors, and between various video equipment like VCRs, DVD players, and televisions. The high-frequency signals used in video transmission are susceptible to interference, making the shielding provided by the outer conductor essential.
RF and Communication Systems: 75-ohm cables are widely used in RF (radio frequency) systems, including communication devices, antenna systems, and broadcasting equipment. The precise 75-ohm impedance ensures that RF signals are transmitted with minimal reflection or loss, which is crucial in systems that rely on accurate and clear signal transmission.
Data and Networking: In networking applications, 75-ohm cables are used for data transmission, especially in older coaxial network setups. Although twisted pair cables have largely replaced coaxial cables in modern networks, 75-ohm cables are still used in legacy systems and specific applications that require high bandwidth and minimal interference.
Satellite and Cable TV: 75-ohm cables are commonly used in satellite and cable television systems for the transmission of high-definition television (HDTV) signals. The cables connect satellite dishes to receivers, ensuring that the transmitted signals are not degraded by interference or signal loss.
Security Systems: Security camera systems often use 75-ohm braiding cables to transmit video signals from cameras to recorders or monitors. The shielding from the outer conductor ensures that the signal remains clear, even in environments with significant electrical noise.
Measurement Equipment: In scientific and industrial measurement systems, 75-ohm cables are used to transmit high-frequency signals for test equipment and instrumentation. Their ability to maintain signal integrity over long distances makes them ideal for precise measurements and data collection.
Advantages of 75 OHM Braiding Cable
The use of 75-ohm braiding cables offers several key advantages:
Signal Integrity: The combination of the dielectric insulation and outer conductor braiding ensures that signals are transmitted with minimal distortion. The shielding protects the signal from external electromagnetic interference (EMI) and radio-frequency interference (RFI), maintaining high-quality signal integrity.
Low Signal Loss: The 75-ohm impedance is optimized to minimize signal loss, ensuring that signals can travel longer distances without significant degradation. This makes these cables ideal for applications that require high-fidelity transmission over longer distances, such as in broadcast or satellite systems.
Durability and Reliability: The outer braiding and protective jacket of the cable provide mechanical protection, making it resistant to physical damage such as abrasion, crushing, and exposure to environmental factors. This enhances the cable’s longevity, even in harsh conditions.
Versatility: While commonly used in video and communication systems, the 75-ohm braiding cable is versatile enough for a wide range of applications, from security systems to measurement equipment and beyond. Its ability to support high-frequency signals makes it suitable for many types of data and communication networks.
Cost-Effective: Despite offering excellent performance in signal transmission, 75-ohm braiding cables are relatively affordable compared to other types of high-performance cables. Their cost-effectiveness makes them a popular choice in both commercial and consumer-grade systems.
